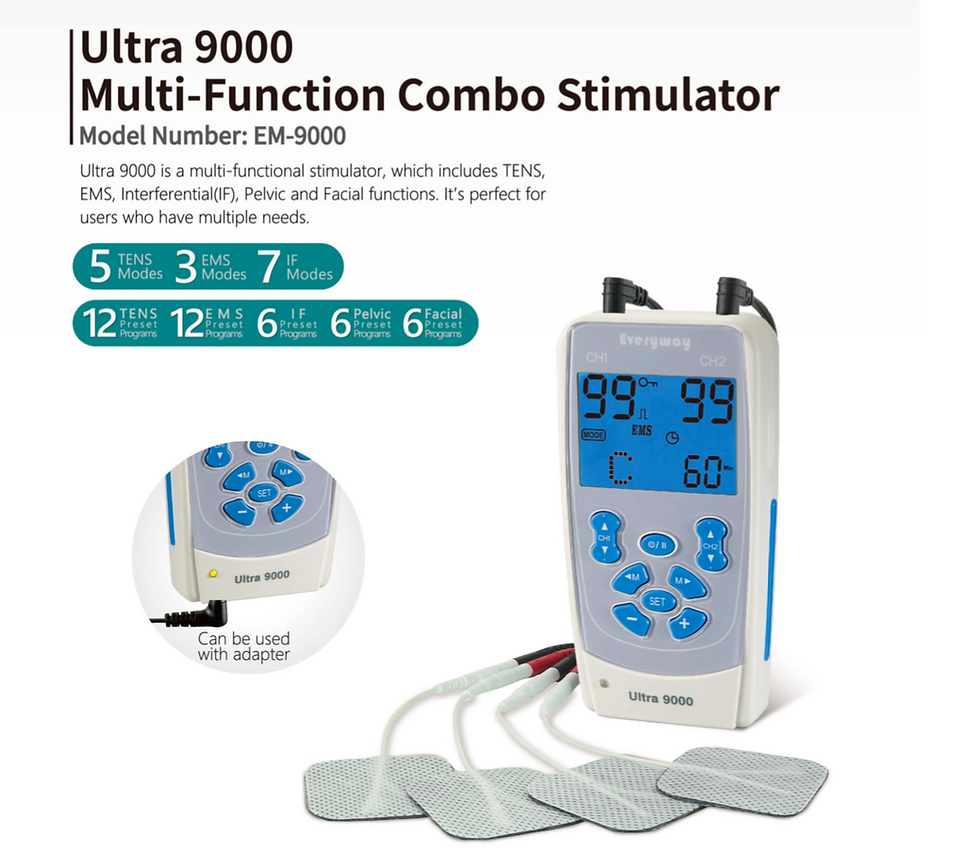

Multi Function Stimulator Ultra 9000

This multifunction stimulator is the latest in technology and innovation. It combines the function of several machines into one. This 5 in 1 machine includes TENS, EMS, Interferential (IF), Pelvic and Facial Functions. It is perfect for users who have multiple needs. The machine is very easy to use thanks to the pre-loaded programs. Simply select the desired program.



The Ultra 9000 comes with 57 programs and modes.

1. 5 TENS modes.

2. 3 EMS modes.

3. 7 Interferential modes.

4. 12 TENS Preset programs.

5. 12 EMS Preset programs.

6. 6 Interferential Programs.

7. 6 Pelvic muscle programs.

8. 6 Facial preset programs.



Technical Specification

Channels: 2 channel 4 pads.

Size: 13.5 cm (L) x 6.9 cm (W) x 3.2 cm (H).

Weight: 215 g including battery.

Power supply: Dual power 9 volt battery or 240 v wall power.

Stimulation Type: TENS, EMS, IF, Pelvic & facial stimulation.

TENS & EMS

Amplitude: Adjustable 0-100mA peak into 500ohm load each channel.

Wave form: Asymmetrical Bi-Phasic Square pulse.

Pulse Rate: Adsjustable, 2-90 sec, 1 sec/step.

Pulse width: Adjustable, 50-400us/step.

On Time: Adjustable, 2-90 sec, 1 sec/step.

Off Time: Adjustable 0-8 sec, 1 sec/step.

Ramp Time: Adjustable, 1-8 sec, 1 sec/step.

Timer: Adjustable, 1-60 min and continuous.

Modes: 5 TENS modes, 3 EMS modes + 24 preset programs.



INTERFERENTIAL

Amplitude: Adjustable, 0-60 mA peak into 500 ohm load each channel.

Carrier frequency: 4000 Hz fixed channel 1.

Modulating frequency: 4004-4160 HZ, Adjustable channel 2.

Constant mode: Constant stimulation, 4-160bps/step.

Output configuration: Quad polar 4 electrodes.

Interference Pulse frequency: 4-160 bps adjustable, 4 bps/step.

Auto sweep: 4-45bps, 80-145 bps & 4-SET bps.

Wave form: Symmetrical balanced Sine wave.

Sweep Time: 15 seconds.

Pulse duration: 125 micro sec maximum.

Timer: Adjustable, 1-30 minutes.

Frequency Shift: 6 modes, 1/1 abrupt shift, 6/6 abrubt shift, 6/6 ramped, 10/10 abrupt shift, 10/10 ramped & Repeat. bps can be adjusted.

Modes: 7 modes + 6 Preset programs



FACIAL & PELVIC

Amplitude: Adjustable 0-60 mA peak (load 500ohm).

Programs: 6 facial preset programs, 6 pelvic preset programs.

Wave form: Asymmetrical Biphasic square pulse.

















Ultra 9000 Multi Function Stimulator

AU$399.00 Regular Price
AU$279.00Sale Price
  • What's Included in kit?

    1. Device Ultra 9000.
    2. Carry storage bag.
    3. 12X Electrode pads.
    4. 2 Lead wires.
    5. 9 volt battery.
    6. 240 volt wall adapter.
    7.  Instruction manual and 3 easy use guides.
    8. PR-06A Rectal Probe.
    9. PR-02A Vaginal Probe.
    10. D20/D21 Metal facial Electrodes.
    11. Free express, next day delivery + signature (value $19.80).



    WARNINGS & PRECAUTIONS:

    • Check with your doctor before using this device or any other tens device.
    • Never use this device if you have a pacemaker or any digital implant.
    • Check with your doctor if you have Epilepsy or Heart problems.
    • Keep away from children.
    • Do not attempt to modify the performance of this device.
    • Do not use faulty or damaged lead wires.
    • We do not guarantee that this device will cure your condition. It's for pain relief only.
